Features

• Desktop amplifier/DAC for STAX electrostatic headphone with a compact size.
• ESS ES9018 DAC coupled with TI OPA1642 ultra low distortion op amp to achieve bit correct signal representation.
• XMOS USB interface supports DSD128 playback and PCM stream with up to 384KHz sample rate.
• Multiple input selections including optical fiber and coaxial.
• Amplifier circuitry based on discrete components - heritage from classical STAX amplifier product.
• Voltage meter dancing with input signal provides an enjoyment more than music.
• Well selected internal components reflect high quality requirement.
• Full Aluminium housing with multiple surface processing to achieve velvet feel.
• Standard STAX 5Pin connector for all STAX headphones.

Specifications

• Frequency response : DC -40KHz (+0dB, -3dB)
• Rated input level : 130mV (100V output)
• Maximum input level : 30V (minimum volume RCA analog input)
• Gain : 59dB (900 times)
• Harmonic distortion: <0.025% /1KHz-10KHz/ SR-L series
• Input impedance: 20KΩ (RCA input)
• Maximum output voltage: 400Vr.m.s (1130Vp-p)
• Bias voltage: DC 580V
• Rated power consumption: 35W
• Recommended operating temperature:0-35C, <90% RH (No condensation)

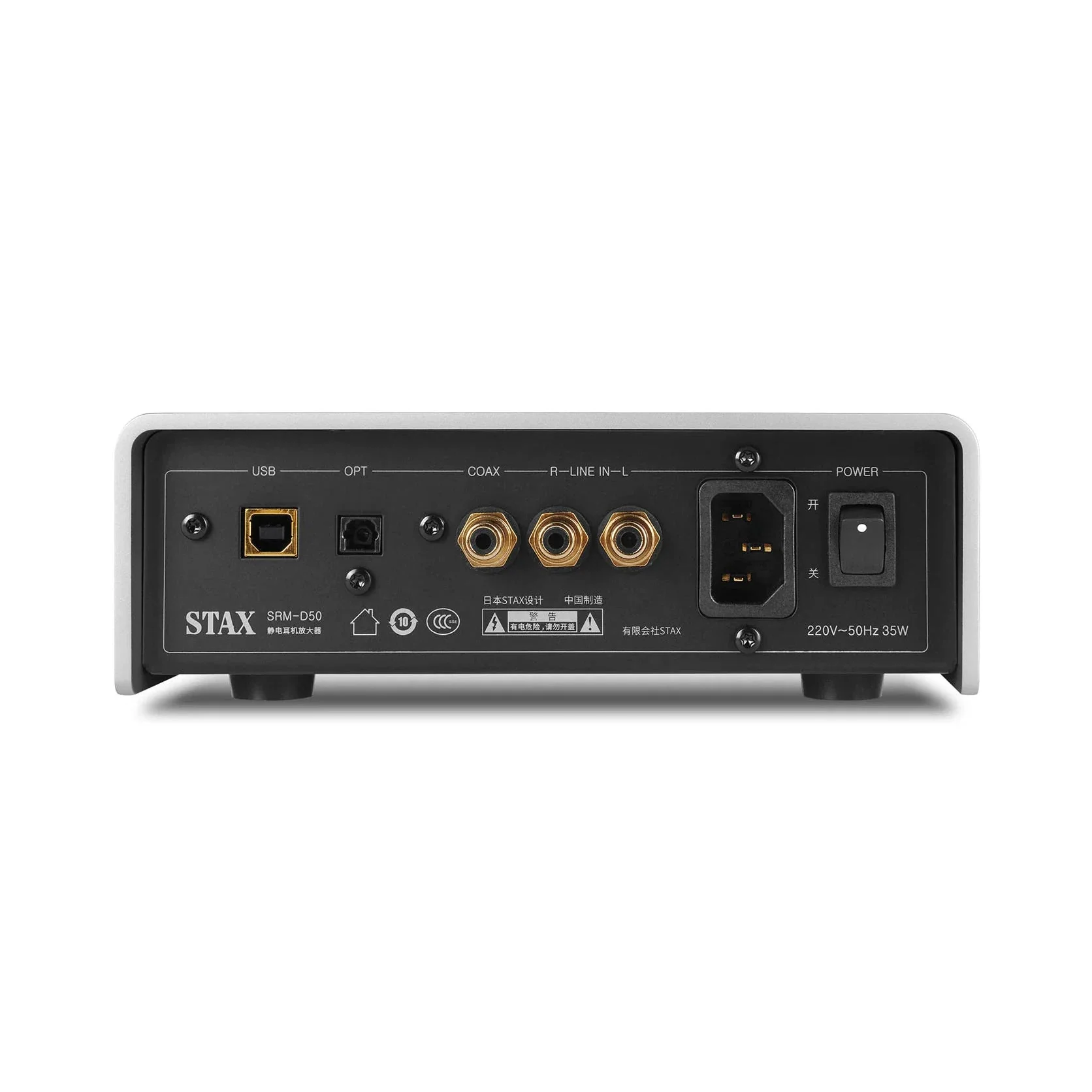

• Signal input: USB/Optical / Coaxial digital inputs, RCA analog input
