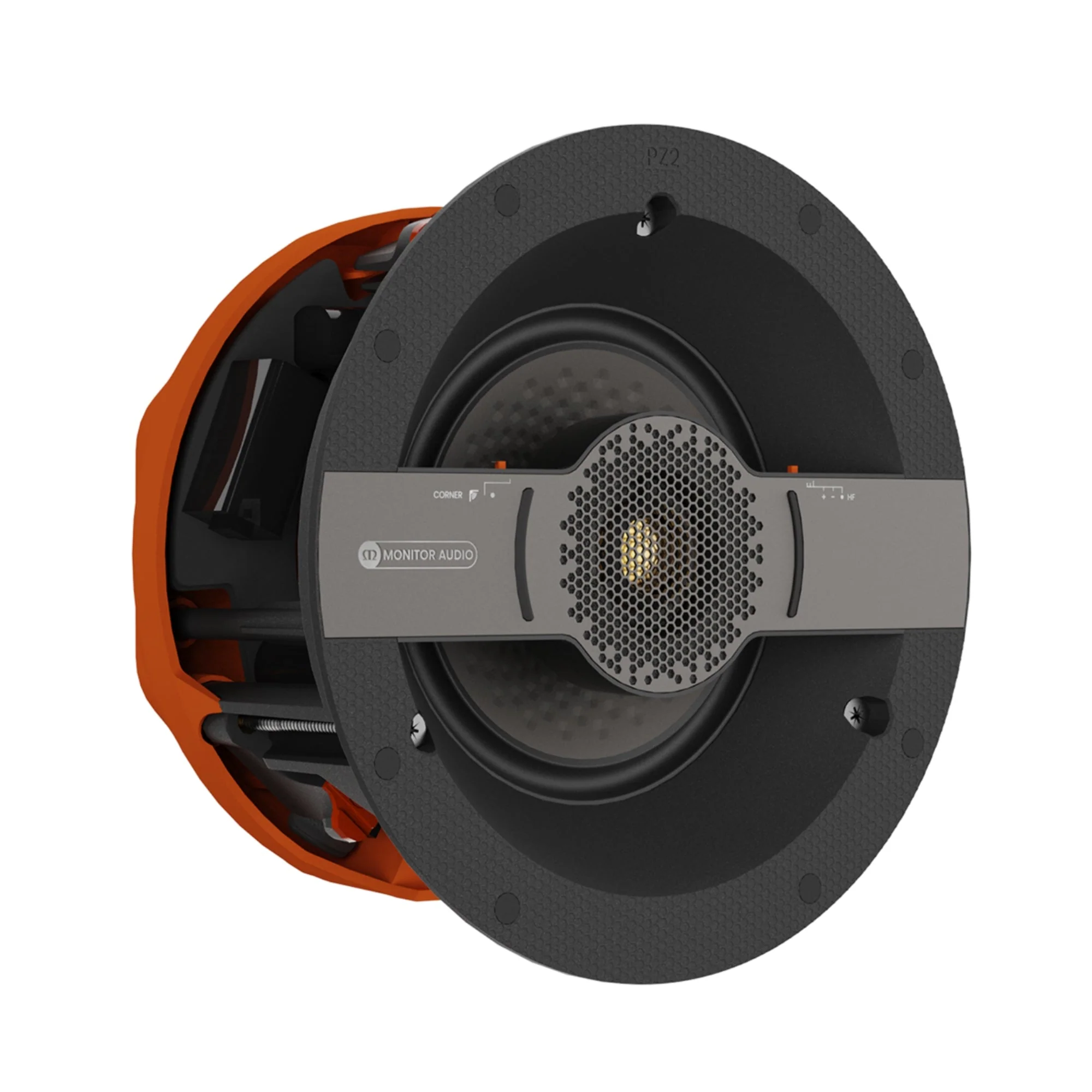

This small Tier 2 in-ceiling loudspeaker is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. It has a cut out dimension of 171 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Features

• Ideal for installations where pristine acoustic performance is required.
• Two-way design
• 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
\n
• 1 x 5" (127 mm) RST II mid-bass driver for pristine mid-range and full bass
• Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
• Tri-Grip II for easy and secure fitment

This small Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 171 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Optional square grille can be used with this model.

Specifications

• System Format: 2–Way
• Channels: 1
• Frequency Response, Installed (-6dB): 40 Hz – 30 kHz​
• Nominal Impedance: 8 ohm
• Minimum Impedance (20Hz to 20kHz): 6.8 Ohm @ 150 Hz
• Sensitivity (2.83Vrms@1m, Installed): 84 dB
• Maximum Peak SPL* (single speaker @ 1m Z-Weighted): 111 dB
• Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 65 W
• Recommended Amplifier Power (RMS into 8 OHM, Music Signal) :35 – 130 W
• Drive Unit Complement: 1 x 5" (127 mm) RST II mid-bass driver , 1 x 1 (25 mm) C-CAM tweeter
\n
• Crossover Frequency: LF/HF: 2.5 kHz
\n
• Mounting Depth: 99 mm (37/8")
• Cut-Out Hole Diameter: 171 mm (63/4")
\n
• External Dimensions (Including Grille (H x W x D)): 201 x 201 x 103​ mm (715/16 x 715/16 x 44/16")
• Weight (each): 1.5 kg (3 lb 5 oz)
• Pre-Construction Bracket: CS-B
• Cabinet Finish: Matt black & Orange​ & Bronze
• Sold As: Single Unit
• Corner Switch: On/Off
• HF Switch: - /0/ +
